Doing Projects to Pass the Time…

Since I have 2 weeks before I see the surgeon for a post-op appointment, I have decided to test some “proof of concept” ideas that I have been kicking around.

This build was based on the Quick Pi Kit from http://www.back7.co

I have wanted a rugged and portable computer setup for taking out to the field. I figured a Raspberry Pi 4 would be ideal because it is cheap and relatively functional for my needs. So basically, this is a Raspberry Pi 4 in a waterproof Pelican Case utilizing 3D printed parts from back7.co. It is a friction fit so no holes are drilled in the Pelican 1150 case to preserve its waterproof-ness.

Keyboard, Battery, RSP1 and Quick Pi Kit.

I downloaded a free Pi image containing CubicSDR from the SDRPlay website and flashed it onto a MicroSD card. The SDR (software defined radio) that I used was the SDRPlay RSP1.

As I’ve stated before, I enjoy listening to various radio programs spanning Mediumwave (AM), Shortwave (HF), NOAA weather, Airband and VHF/UHF frequencies. The CubicSDR software is pretty basic without a lot of features, but it is simple to run and doesn’t require a high end processor to function. I can connect to my Apple Airpods via Bluetooth or you can plug in a speaker or even opt for headphones.

Full setup running. I’m using a Baseus 65watt 30,000mAH battery and I am not getting voltage error messages from the Pi.

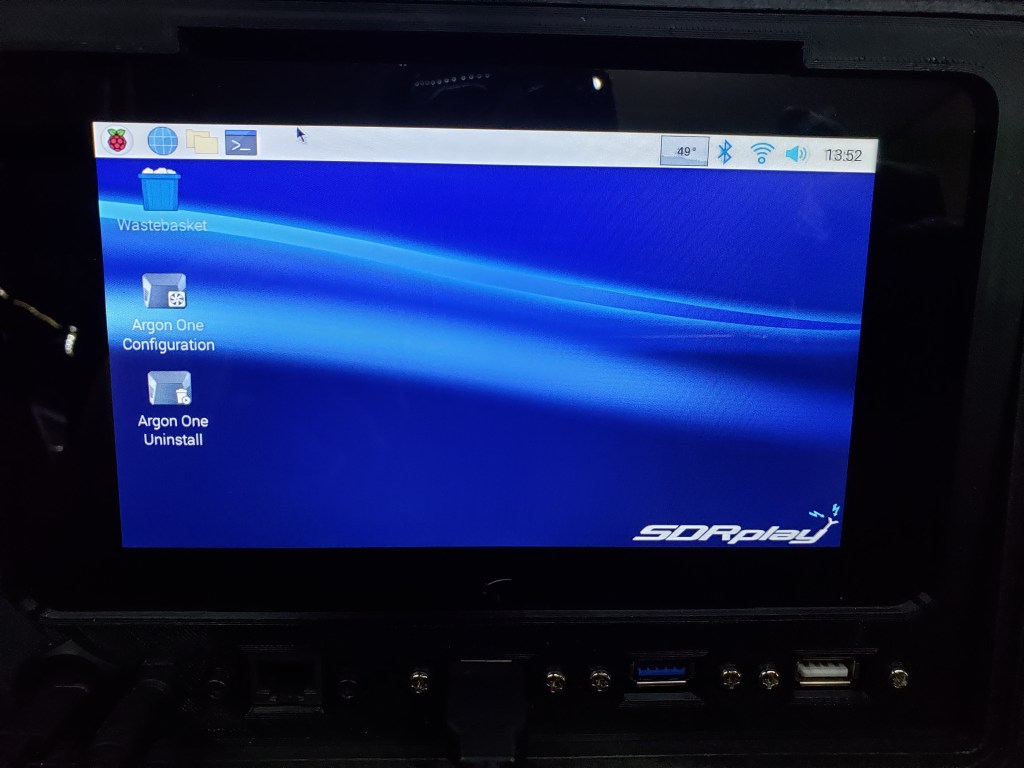

Basic image on screen.
Screenshot of CubicSDR in operation

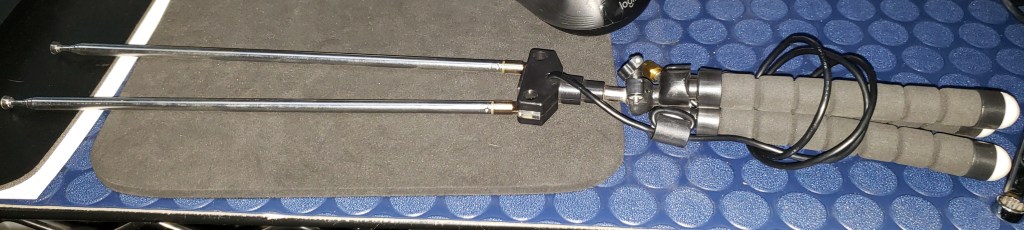

Portable antenna I was using.

It was fun to test out and it works well. My compliments to Jay over at back7.co for the very well made 3D printed panels to go inside the Pelican 1150 case.

This is a fully functioning Raspberry Pi so I can pull up files from a thumbdrive or connect to wifi if needed. The only limiting factor for a build like this is your own imagination. It’s not quite a “cyberdeck” nor is it an SHTF backup computer, but it has lots of possibilities.

Quick Pi Kit insert.

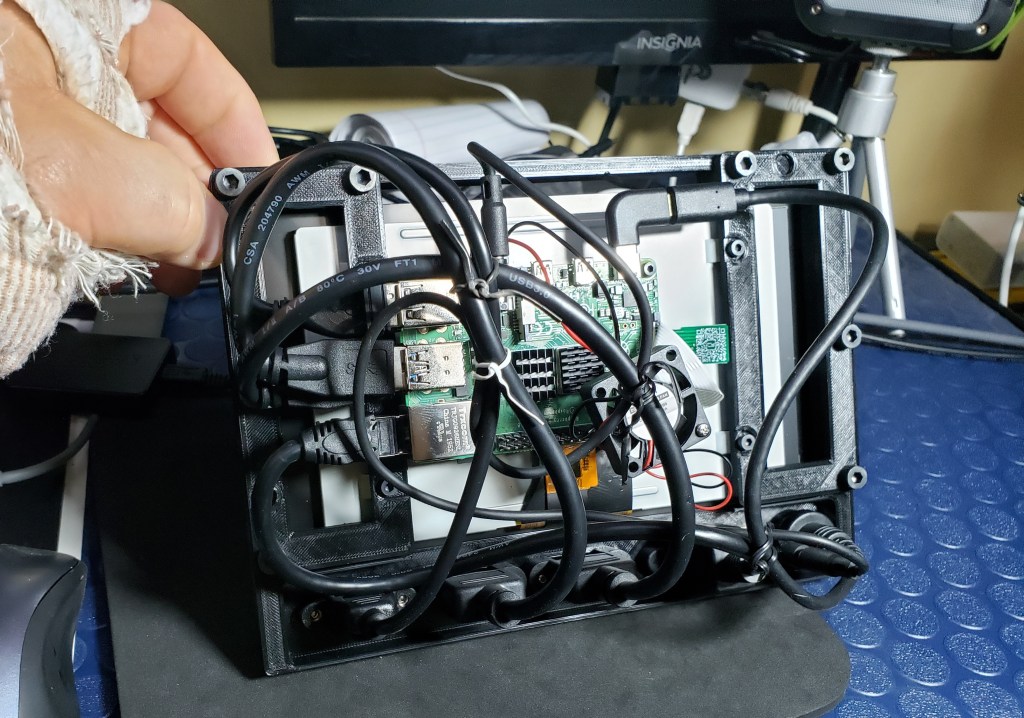

7 inch Pi touchscreen, Raspberry Pi 4 and cable extensions. I added a small fan to help control the temperature of the Pi.

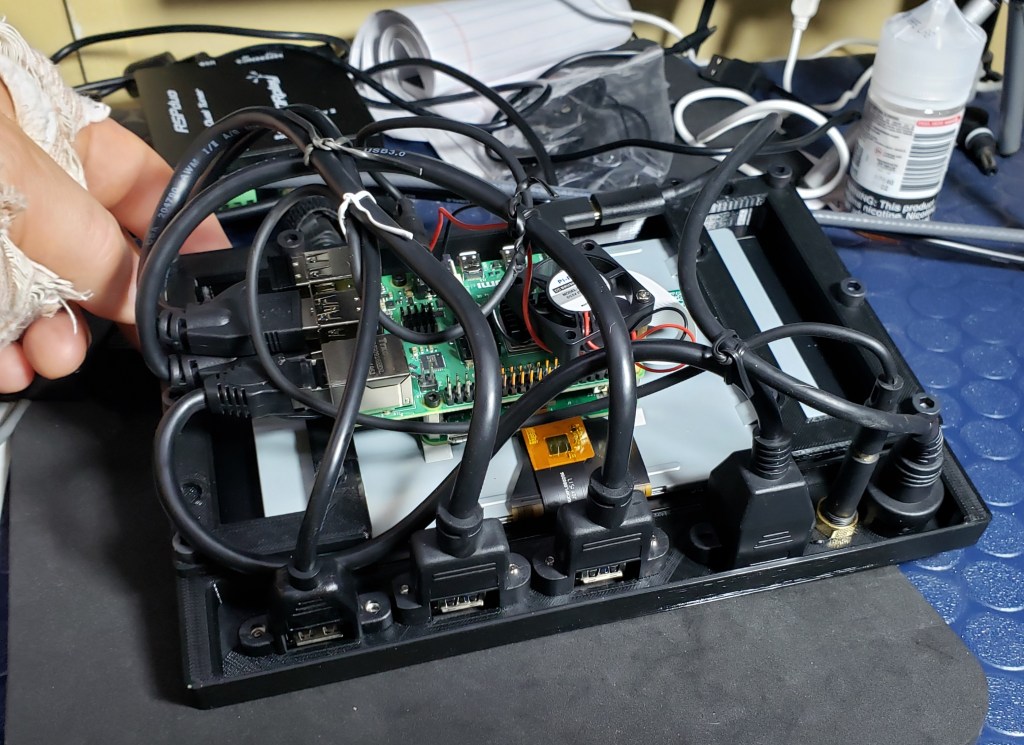

Wired up and ready to fit inside the Pelican 1150 case.

I know it’s not fishing related…but it’s wintertime and I do have other interests. Thanks for reading…
